Cwm Twrch

00 and 00n9, Great Western Railway/British Railways (Western Region)

and Narrow gauge industrial Railways, 12 foot by 3 foot


The Twrch is a tributary of the Tawe [Swansea] River and lies on the boarder between the Brecon Beacons and the 'Valleys' [industrial South Wales].
The valley is a natural route between Swansea & Beacon and has an interesting industrial history [see
Industrial archaeology of Cwm Twrch by Dilys Powell].

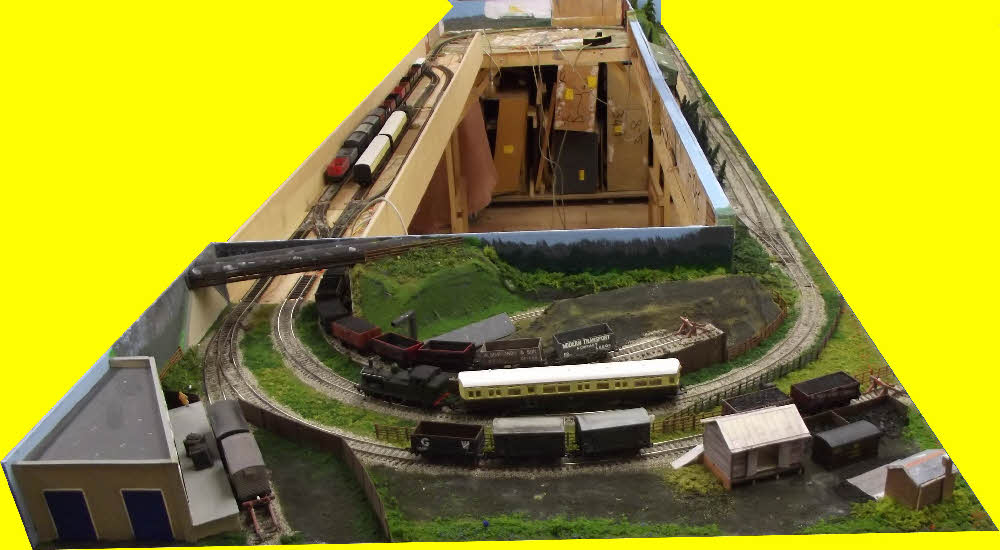

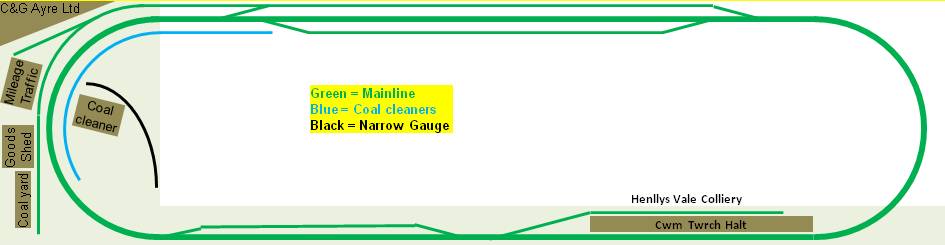

The first of four layout related to the valley Cwm Twrch.
Coal heritage is shown by Hennllys Vale Colliery
and the Coal Cleaner. General traffic is handled by the goods yard.
 Cwm Twrch is not a block post so is unsignalled with points operated by point leavers
unlocked by a key on the train staff with the loop for shunting and wagon storage.

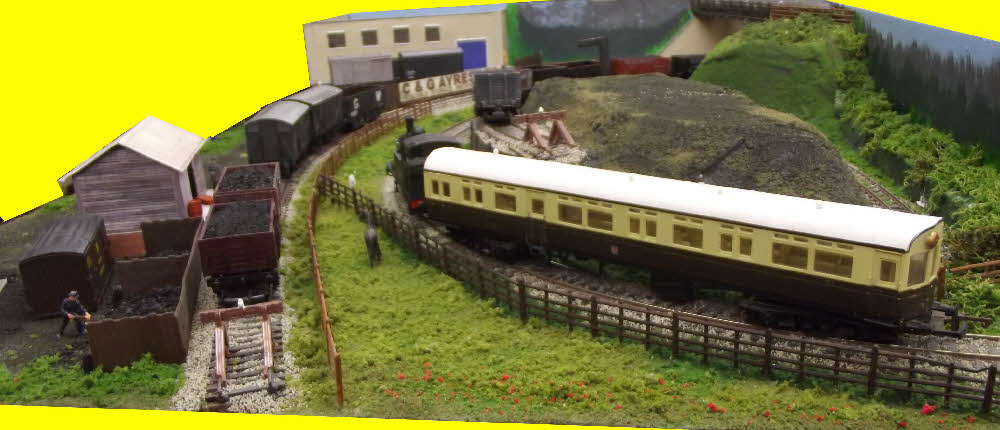

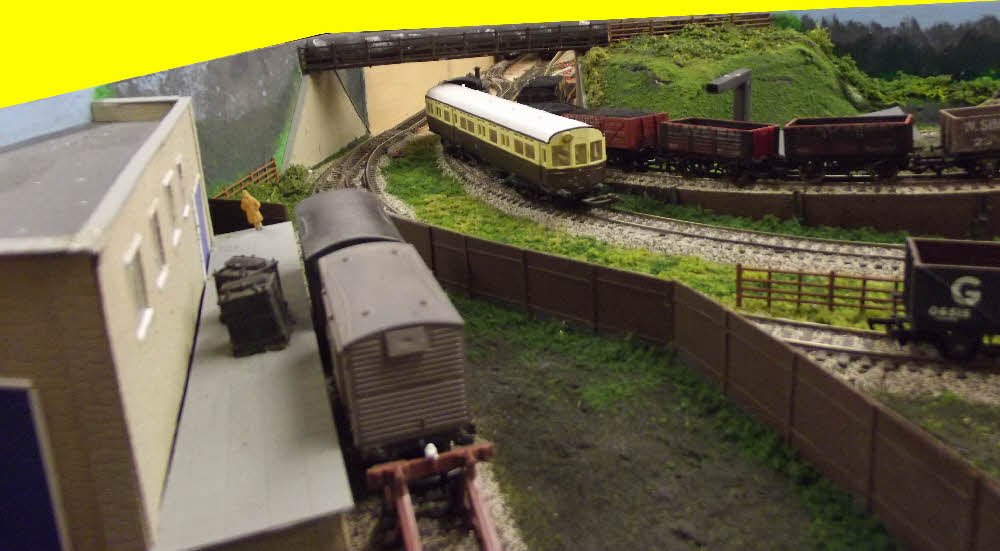

The yard at Cwm Twrch

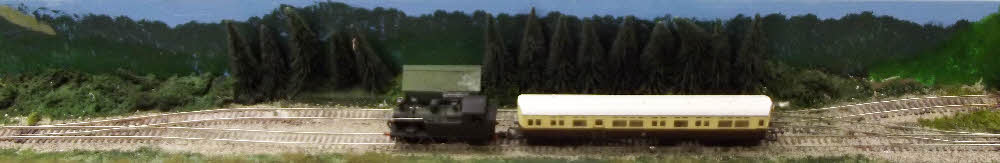

The shunting loop at Cwm Twrch

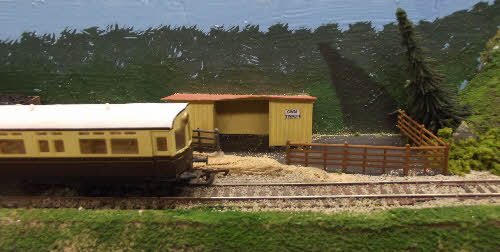

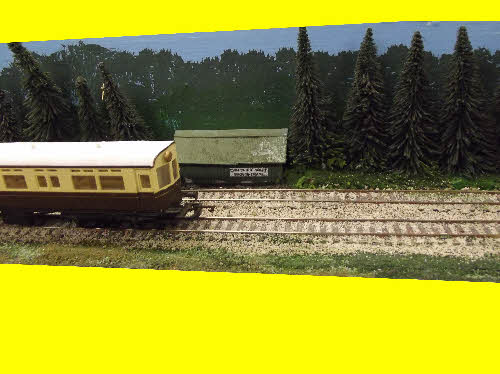

The Halt at Cwm Twrch

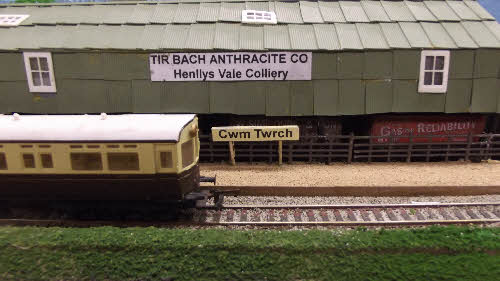

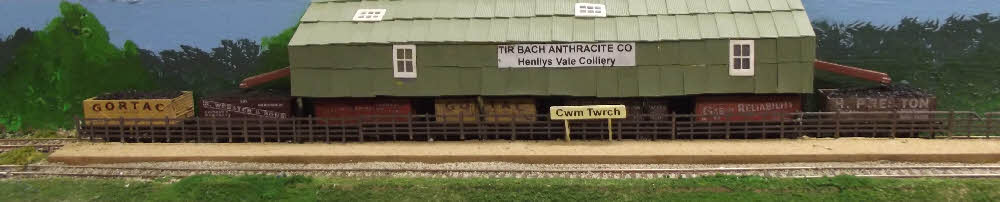

Tir Bach Anthracite Co, Henllys Vale Colliery
Only the screen is modelled.
At the screen waste is removed from the coal which is then divided into lump and the less valuable small coal.
The lump coal chute is at the front of the screen and the small coal chute is at the back.
Output is 7 parts lump to 1 part small.
